EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

인증
중국 LAKER AUTOPARTS CO.,LIMITED 인증
중국 LAKER AUTOPARTS CO.,LIMITED 인증
고객 검토
샤워실 트레일러에 좋은 마무리. 우리는 당신의 부드러운 의사소통과 빠른 반응에 깊은 인상을 받았습니다.

—— 레스 씨

AUTOLAKER는 포크리프트 정비에서 직업적입니다. 우리는 파트너 같이 더 많은 것입니다.

—— Sanchez 씨

제가 보내온 모든 질문에 답변해주셔서 감사합니다. 타이어 프레스 장비가 정말 좋네요

—— Vargas Ms

우리는 당신의 건전지로 만족됩니다. 당신의 추가 노력을 당신을 몰리 감사하십시오.

—— Mr.Cvetkovic

제가 지금 온라인 채팅 해요

EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

큰 이미지 :  EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger

제품 상세 정보:
원래 장소: 중국
브랜드 이름: EP
인증: ISO&ECE
모델 번호: DS3
결제 및 배송 조건:
최소 주문 수량: 협상 가능
가격: 협상 가능
포장 세부 사항: 나무 팔레트
배달 시간: 1-5개 25-30일 10개 대량 주문 35-40일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 한 달에 30 개
상세 제품 설명
모델: DS3 운전하다: 전기 같은
연산자 유형: 보행자 부하 용량: 1500KG
맥스. 인양높이: 3018mm 낮아진 높이: 90mm


Product Introduction
Most small & medium warehouses, e-commerce storage and factory workshops face 3 common troubles: narrow aisles inaccessible to large forklifts, mismatched stackers for multi-height racks, messy separate charging equipment occupying extra space.
EP DS3 walkie electric stacker is specially designed for light-duty vertical pallet handling. It supports 1500kg rated load capacity with a tiny turning radius of only 1455mm, matching narrow aisles over 2200mm. It fully covers pallet stacking, rack loading and finished goods transfer.

Why Choose Us
1. 6 Optional Mast Heights for All Rack Heights
2. Integrated Built-in Charger, Dual Battery Options
3. Auto Speed Reduction & Electromagnetic Brake for Safety
4. Compact Body Perfect for Narrow Aisles
5. Customizable Fork, Mast & Tiller Attachments

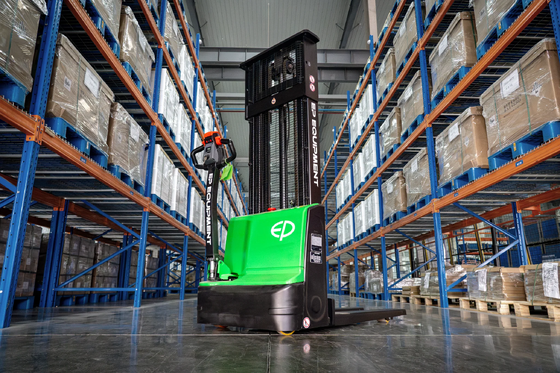

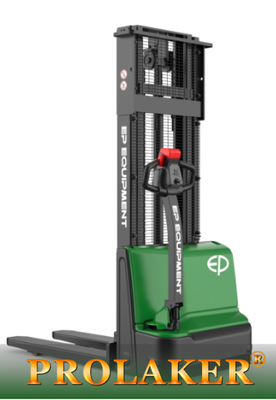

 EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger 0  EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger 1
Product Specification
Item Specification
Model DS3
Rated Load Capacity 1500kg
Service Weight 520kg
Wheelbase / Turning Radius 1210mm / 1455mm
Overall L×W×H (Mast Retracted) 1727×834×2067mm
Min. Fork Lowered Height 90mm

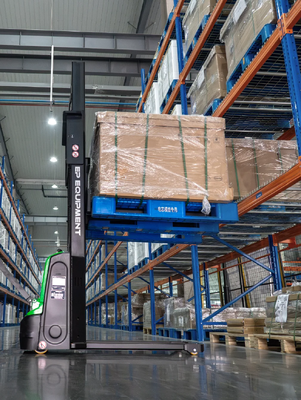

 EP DS3 Walkie Electric Stacker 1500kg, Narrow Aisle Compact Pallet Stacker with Built-in Charger 2

Real Customer Application Cases


Configuration: DS3 standard 3018 mast, 80Ah AGM battery, 1150mm standard forks

Original Pain Points: Narrow warehouse aisles, low efficiency of manual stackers, separate external chargers

Actual Effect: Daily pallet handling capacity increased by 45%; built-in charger supports 24h shift work; annual maintenance cost reduced


FAQ
Q1: What is the maximum lifting height of DS3? Can customized higher mast be provided?
A: Standard max lift height 3018mm, optional max mast 3918mm with extended height 4432mm. Custom higher mast is unavailable currently.

Q2: Does the built-in charger need extra charging cabinet?
A: No external charging cabinet required, directly connect to 220V industrial or household mains power.

Q3: How to choose between lead-acid and lithium battery version?
A: Select lithium ion for multi-shift non-stop operation with lighter weight & longer endurance; choose standard AGM lead-acid for single-shift low-budget use.

Q4: Can we customize charger voltage for overseas markets?
A: Multi-country voltage chargers are available for Europe, Southeast Asia and other regions.

Q5: Can we replace forks separately if pallets have non-standard sizes?
A: 6 sizes of forks for optional separate replacement, no need to customize the whole stacker.
