제품 상세 정보:
결제 및 배송 조건:
|
| 모델: | CZC7EI E100V/100A | 단계: | 1 |
|---|---|---|---|
| 차원: | 728×394×690mm | 무게: | 66kg |
| 최대 DC: | 100A | 최대 출력 전압: | 100V |
Product introduction
Through the application of high-performance embedded charging control unit, CZC7EI series charger could control charging current. Main circuit with parameter-optimized design could provide continuously adjustable charging current for different lithium batteries, thus meeting
various charging process requirements. Charging controller has a built-in default charging curve ,built-in a variety of BMS charging communication protocols, In the meantime, Users could set and save charging curve which has been changed, satisfying customized charging requirements. This charging controller would monitor various parameters in the process of charging in real time. In this way, charger has perfect protection function which makes charging process execute smoothly. Meanwhile, charging controller also provides communication port,output protection port and chain control with other devices which would be convenient for the control of charger upper computer.
Product parameter
|
Rated input voltage
50Hz/60Hz
|
1 phase 110V
|
|
Rated input power
|
10.8 kVA
|
|
Input current
|
97.8A |
|
Max DC
|
100A |
| Max output voltage | 100V |
| Weight | 66kg |
| Communication | CAN |
| Protection | IP21 |
| Dimension | 728×394×690mm |
Key features
1. Reversing charge function:The user can set timed charge,use peak and valley electricity to charge save electricity cost.
2.Power failure protection.:The parameters set by users would be recorded persistently. The data would not be lost if and when the power is terminated.
3.LED display the battery voltage, charging current, capacity,time, charger working status；
4.Special charging function: the connecting line falls off during the process of charging, and the charger will automatically shut down (battery falling off detection).
5.Protection function. Fault protection and fault warning function.

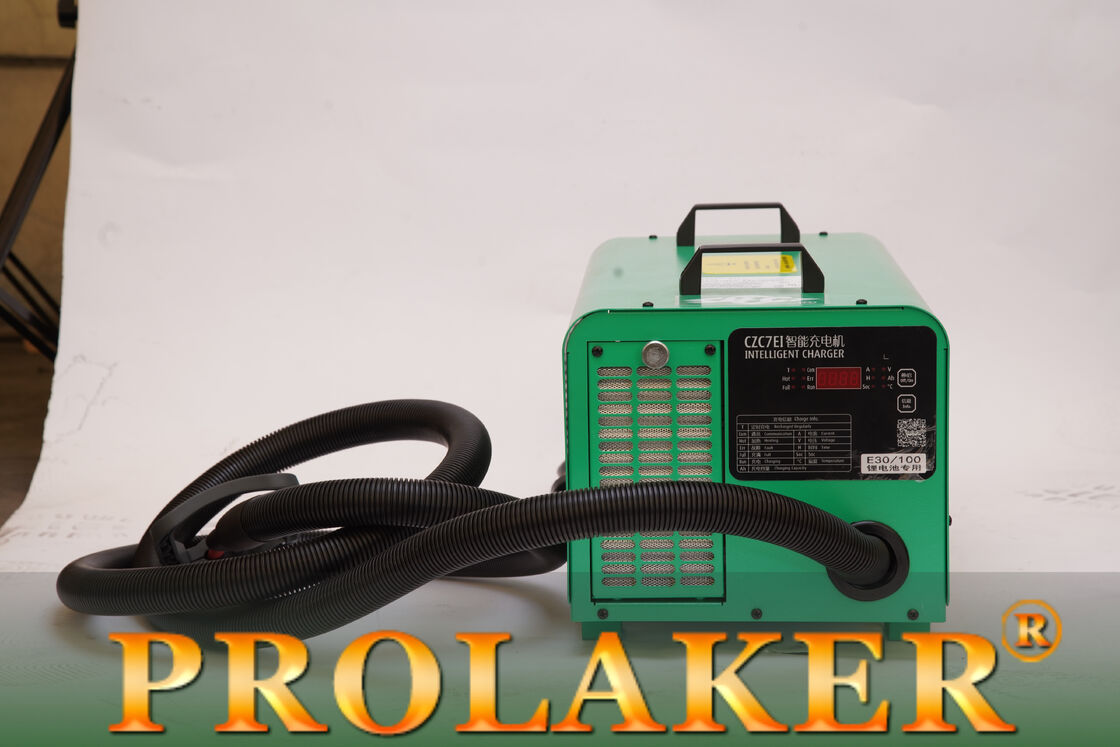

Produt display
Normal operating conditions
(1) No higher than 1000 meters in altitude；
(2) Ambient temperature between -10 and +45 degrees C.；
(3) Relative humidity not exceed 95% for conditions of ambient temperature around 20±5℃.；
(4) Store in a place which is no rain and snow invasion, no conductive dust, no explosion risk environment.；
(5) Do not store in harmful atmosphere such as corrosive gas, insulating gas, steam；
(6) Place without violent vibration and impact；
(7) The machine should be placed in a ventilated and dry place to avoid high temperature, dust and corrosive gas；
(8) In order to ensure the normal operation of the machine, keep the air around the machine unobstructed and keep a certain gap with other objects, and check whether the vent is blocked
